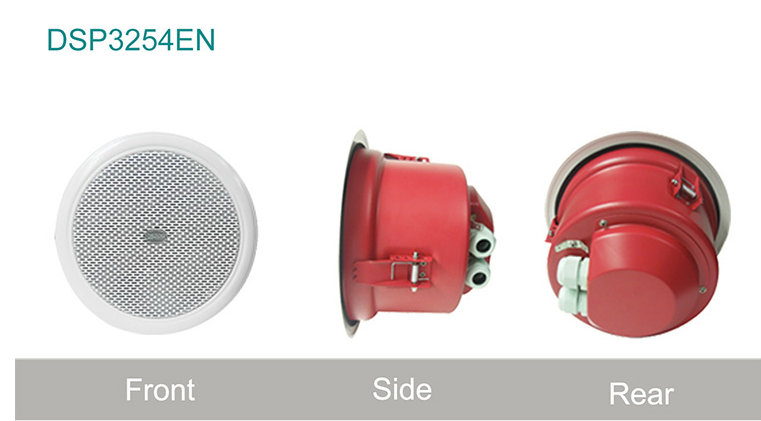

dsp3254en

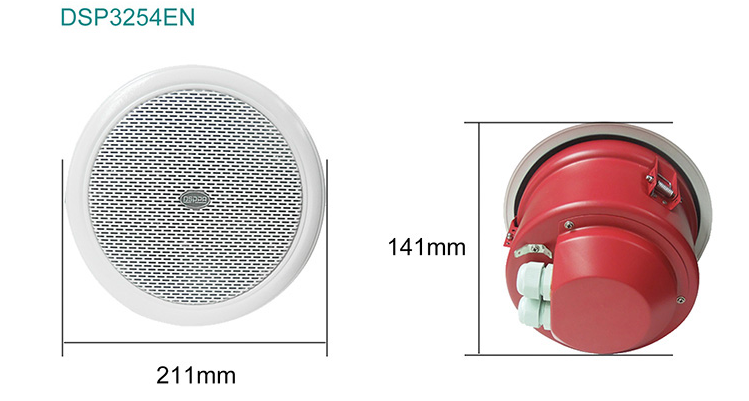

dsp3254en dimensions

The DSP3254EN is a ceiling speaker designed for voice evacuation systems, which comply with EN54-24 requirements. It has a 100v transformer built in. The 100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.

The built-in 6.5” speaker driver is designed of wide frequency response (90-20,000Hz), the multiple terminals 2.5W-10W can be applied to different occasions vary in area sizes and background noises; It is made of high-class steel and fixed by stamping, which ensures long-term durability, and will never be out of shape; Equipped with leaded wire case which is hard to burn for fireproofing; Spring clip clamp makes the easy and secure installation possible; Driver surround excellent damping, long life, clear and sonorous sounds.

It is an ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.

ModelDSP3254EN
Full-Range6.5"
Rated Power (RMS)10W
Line Input100V
Sensitivity (1m, 1W)91.7dB±2dB
MAX. SPL. (1m)101.7dB±2dB
Frequency Response90-20,000Hz
Dimension (H×W×D)200×200×100mm
Cutout SizeØ185 - Ø200mm
Net Weight1.6kg
